Specifications

  • 0.1° Accuracy
  • ATEX , IECEx, MET (US)/CSA Certified for Hazardous Locations – Gas, Vapor, Dust, and Fibers Approved
    Intrinsic Safety & Increased Safety Options
  • Dual Axis
  • Horizontal and Vertical Mount
  • Scalable Angle Range up to ±180°
  • Analog and Digital Outputs
  • Vibration & Shock Resistant
  • All-Weather IP68 Rugged 316 Stainless Steel Housing. Waterproof up to 10ft.
  • EMC Protected
  • Reverse Polarity Protection

HAZARDOUS LOCATION COMPARISON CHART

H6EX-A1
Location
ATEX / IECEx: Zone 0, 1, 20, & 21
MET (US) / CSA: Class I & II, Division 1
Gas Group:
ATEX / IECEx: IIA to IIC
MET (US) / CSA: A to D
Dust Group:
ATEX / IECEx: IIIB
MET (US) / CSA: F to G
Temperature Group:
Gas: T4
Dust: 200° C
Operating Temperature: -40°C to 65°C
H6EX-A2
Location
ATEX / IECEx: Zone 0, 1, 20, & 21
MET (US) / CSA: Class I & II, Division 1
Gas Group:
ATEX / IECEx: IIA to IIC
MET (US) / CSA: A to D
Dust Group:
ATEX / IECEx: IIIB
MET (US) / CSA: F to G
Temperature Group:
Gas: T4
Dust: 200° C
Operating Temperature: -40°C to 85°C
H6EX-B
Location
ATEX / IECEx: Zone 2 & 22
MET (US) / CSA: Class I & II, Division 2
Gas Group:
ATEX / IECEx: IIA to IIC
MET (US) / CSA: A to D
Dust Group:
ATEX / IECEx: IIIB
MET (US) / CSA: F to G
Temperature Group:
Gas: T4
Dust: 135° C
Operating Temperature: -40°C to 85°C

Hazardous Locations

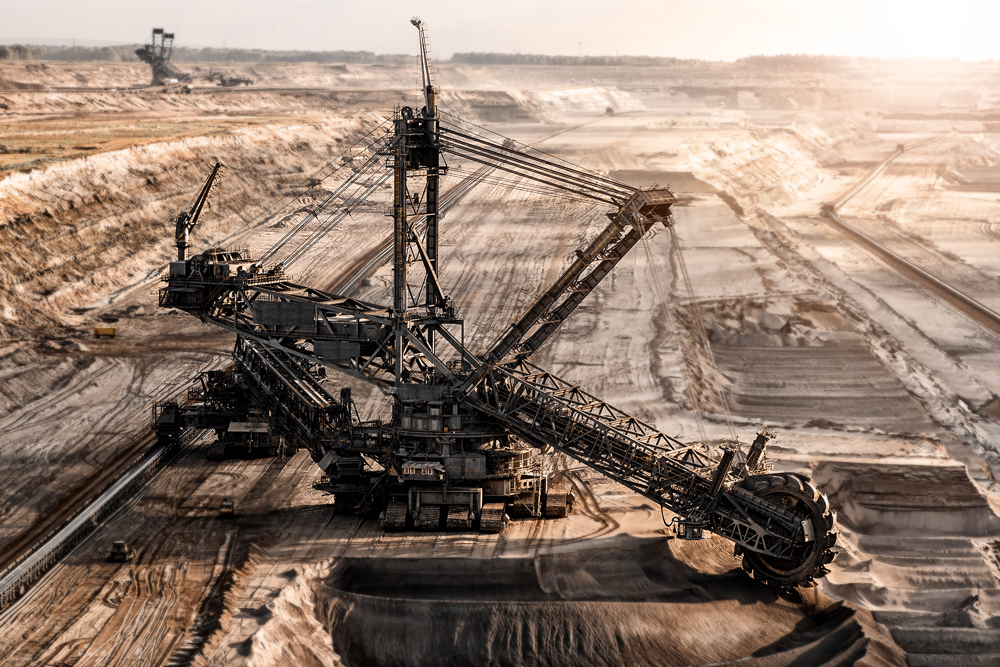

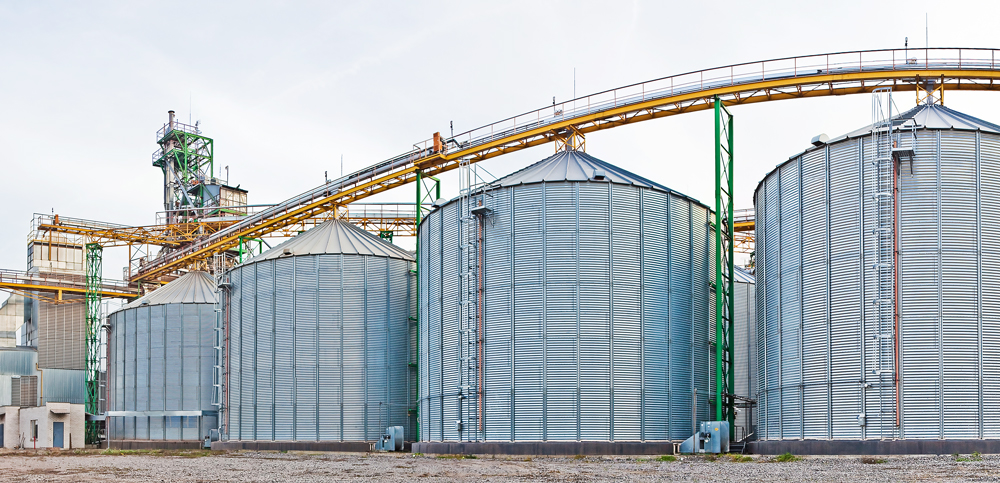

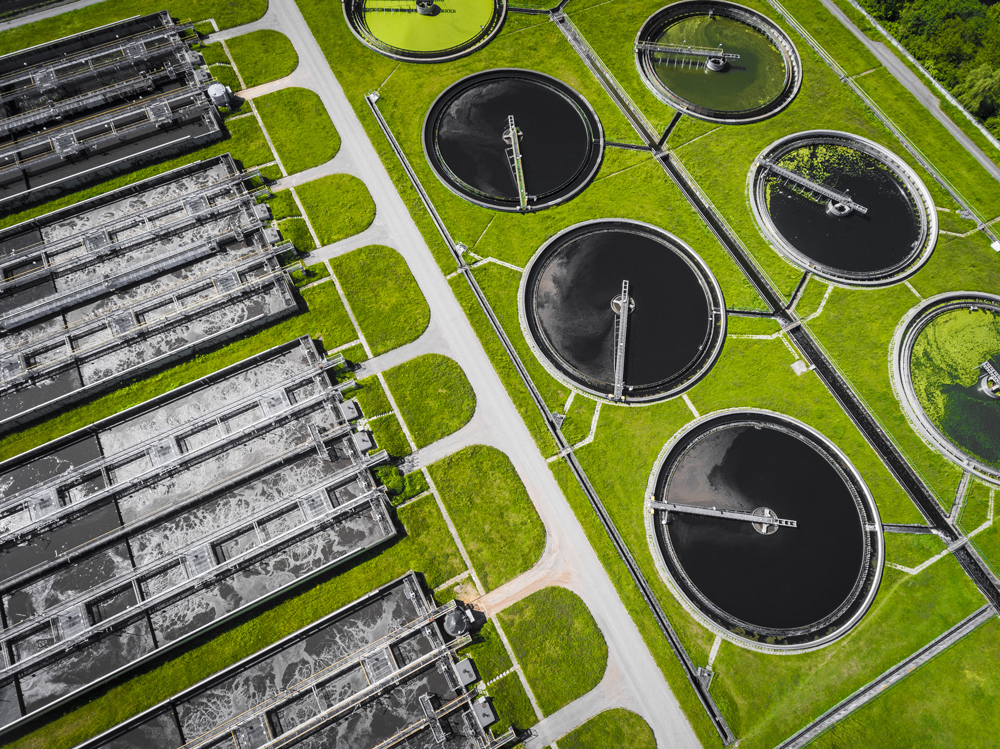

Hazardous locations are defined as places where fire or explosion hazards may exist due to flammable gases, flammable liquid-produced vapors, combustible liquid-produced vapors, combustible dusts, or ignitable fibers / flyings present in the air in quantities sufficient to produce explosive or ignitable mixtures. Some examples of Hazardous Locations can be found below.

FEATURES

HAZARDOUS LOCATIONS

The H6EX-A is intrinsically safe and suitable for hazardous locations with continuous, long, or frequent periods of exposure to hazardous elements.

SCALABLE ANGLE RANGE

Our H6EX is factory configured to your desired specifications. This unit is a Dual-Axis sensor. Each axis has a Scalable Angle Range that can be configured to ±180° individually.

TEMPERATURE COMPENSATION

The H6EX unit incorporates a MEMS sensor referenced to gravity with integrated temperature compensation for repeatable and precise output over a wide operating range.

CONFIGURABLE OUTPUTS

Our H6EX provides two (one per axis) configurable analog outputs, which can be set to current or voltage. A current output value can be set from 4mA to 24mA. A voltage output value can be set from 0V to 10V.
The H6EX-A1 & H6EX-B also includes RS485 digital interface for angle measurements output.

ALL-WEATHER RUGGED IP68 HOUSING

The H6EX comes in a rugged Stainless Steel (316) housing. With an IP68 rating, the H6EX is perfect for any and all harsh environments. Waterproof up to 10ft. IP rating chart is available here.

ADVANCED PROTECTION

From the factory, the H6EX comes with several different protections in place. The unit is Vibration & Shock Resistant. Integrated into the unit, there is also EMC protection (up to 10V/m) as well as Reverse Polarity Protection. Rieker units are 100% tested and guaranteed.

DOCUMENTS AND CERTIFICATES

How to purchase

To purchase our H6EX Intrinsically Safe Inclinometer you can fill out the inquiry form at the bottom of this page.
Alternatively, you can email us at inquiry@riekerinc.com or call us at 610-500-2000.

MORE INFORMATION

This image is an image of our H6EX sensor. It is a stainless steel case, dual axis sensor suitable for use in Hazardous Environments.

H6EX Intrinsically Safe Inclinometer

$1,431.77

Our H6EX is intrinsically safe and suitable for hazardous locations with continuous, long or frequent periods of exposure to hazardous elements.

The H6EX is a dual-axis sensor that provides two continuous and fully configurable analog outputs which can be set to current or voltage. The all-weather, IP68 rated rugged 316 Stainless Steel housing allows for use in the most extreme environments. Waterproof up to 10 feet.
With integrated temperature compensation, vibration and shock resistance, ESD, surge, and reverse polarity protection, the H6EX is equipped to handle the toughest conditions.

Barriers also available.
