1017S5

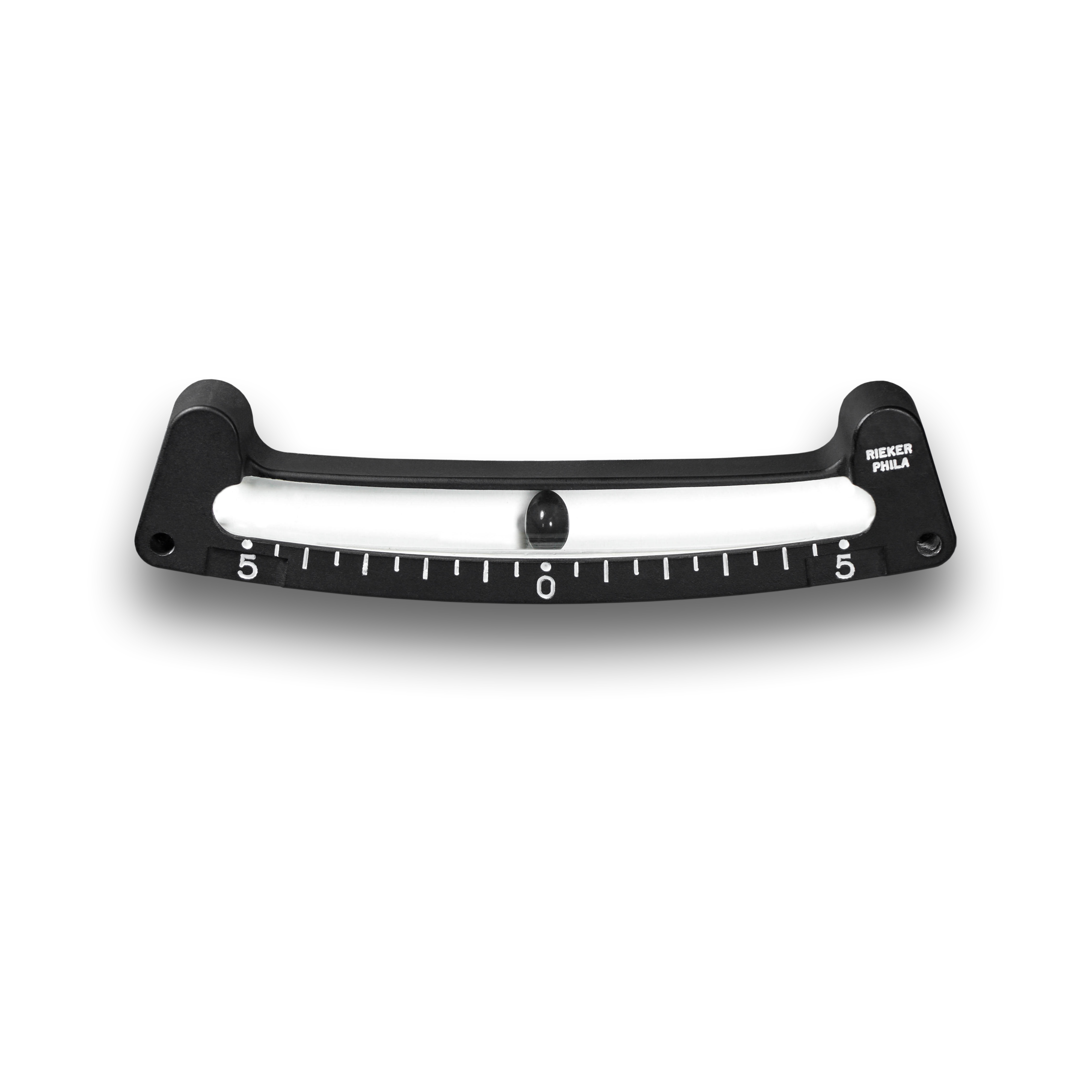

Our 1017S5 mechanical inclinometer is a ±5 degrees unit with 0.5 degree increments. The housing is made of a rugged die-cast aluminum, making these clinometers extremely tough for all types of environments and weather conditions. With operating temperature ranging from -42°C to 75°C the 1017S5 is the perfect all-season inclinometer. The large, clear number and degree markings make it easy to get quick, accurate readings – clearly readable from 10 feet away.
This unit is FAA 8130-3 certified under our PMA agreement.
Our most popular color zones are available for purchase online. If you would like custom color zones or you do not see the color zones you need, contact us via email or phone to place your order.
**This product cannot be purchased online. Please call Rieker customer service at 610-500-2000.**
Rieker manufactures mechanical inclinometers using precision glass tube and ball construction with engraved markings and customer specified color warning zones. All our tubes are filled with a proprietary damping fluid that controls the movement of the ball for a smooth and error-free roll. The fluid combined with large, clear number and degree markings make it easy to get quick, accurate readings under a wide variety of severe environmental conditions.
**This product cannot be purchased online. Please call Rieker customer service at 610-500-2000.**
| Weight | 6 oz |
|---|---|
| Dimensions | 6 × 1.625 × 0.625 in |
| Measuring Range | |
| Classification | |
| Number of axes | |
| Backlit | |
| Application | Aircraft Fuel System Attitude Calibration, Pitch and Roll Monitoring, Roll Angle |
| FAA 8130-3 Certified | |
| Customizable | |
| Industries | |
| Case Material | |
| Color Zones | |
| Tick Mark Increments | |
| Units of Measurement | |
| Brand | |
| Manufacturer |
