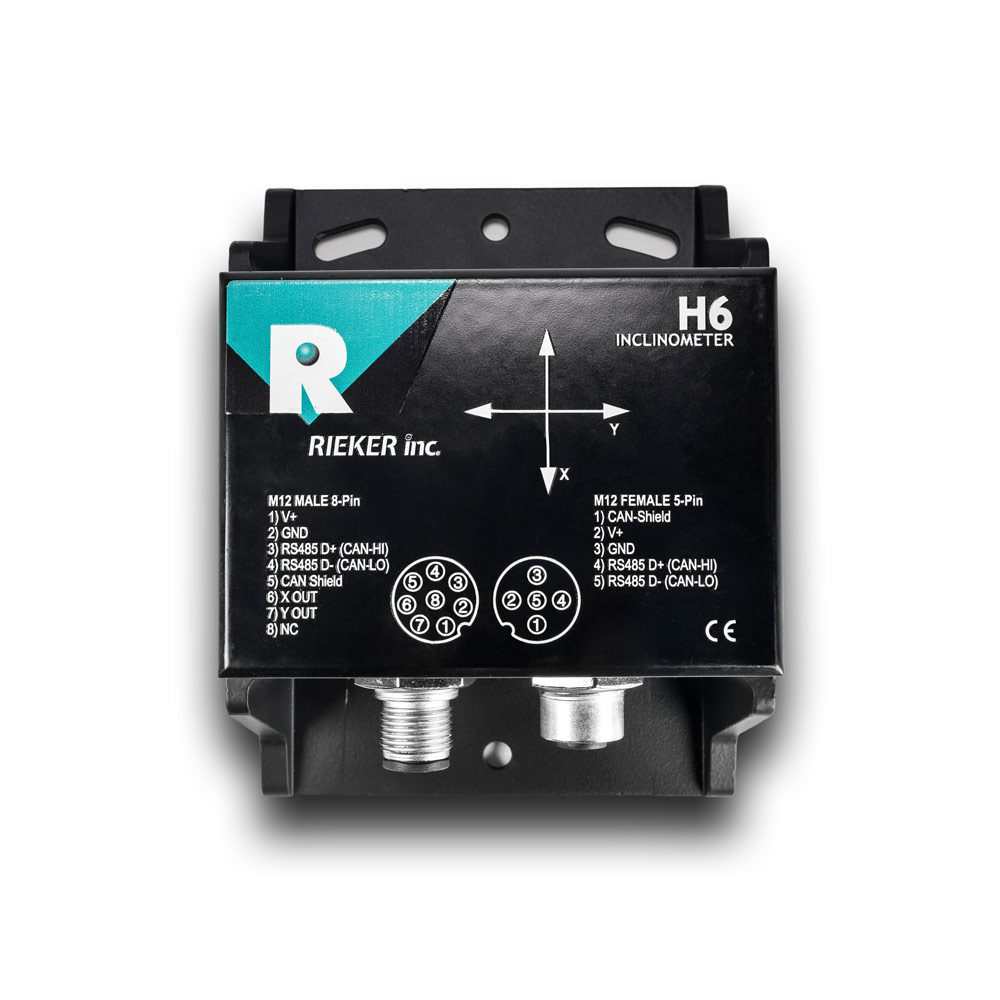

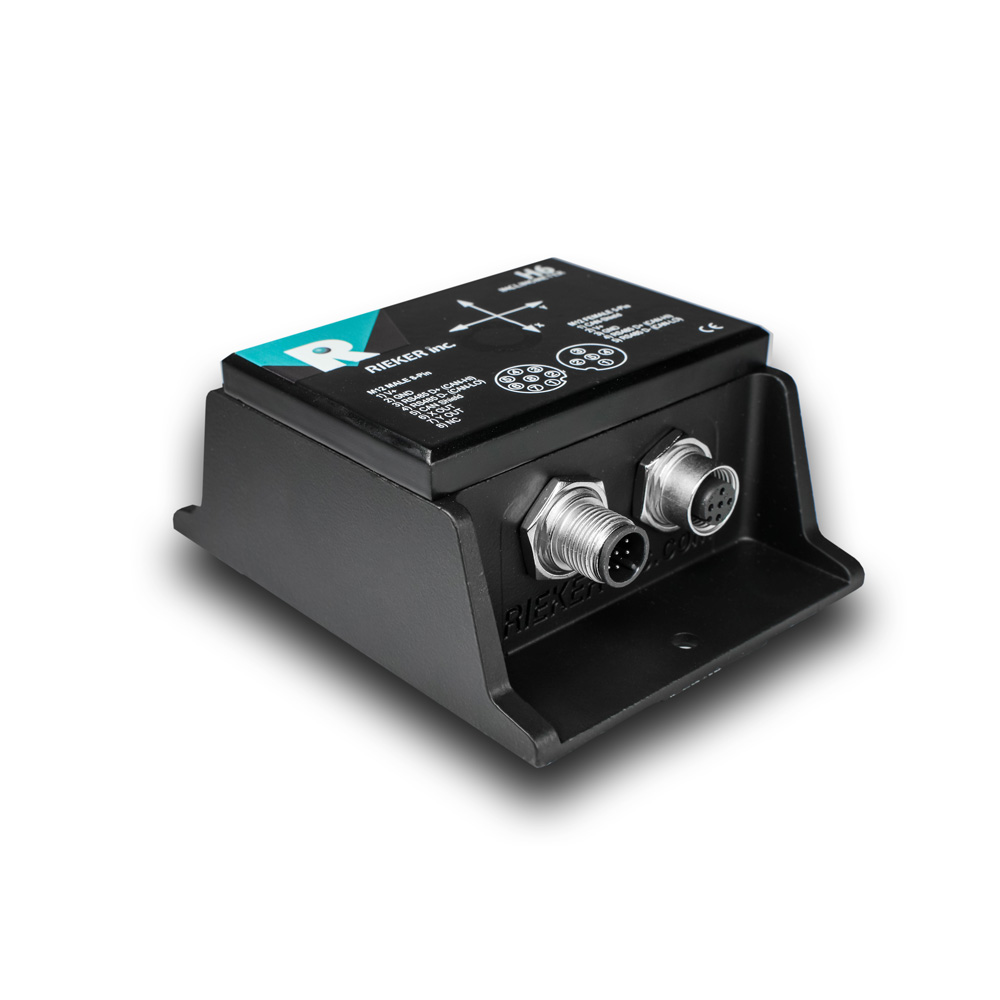

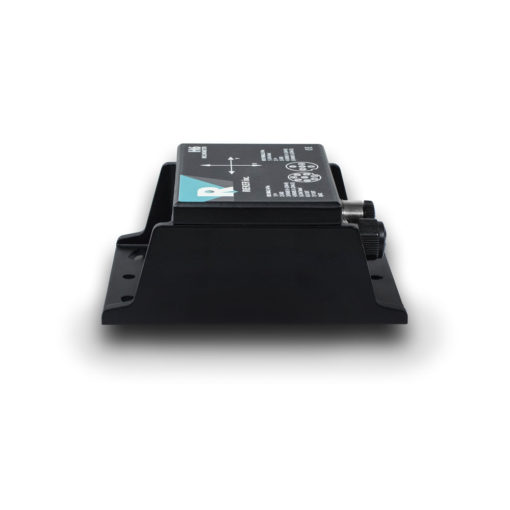

H6 Configurable Digital Inclinometer
$535.00
The H6 inclinometer provides highly accurate tilt sensing in a rugged metal IP68 rated ALL-weather housing. Operating temperature from -40° C to 85° C and underwater operation tested up to 75 feet makes the H6 a perfect inclinometer for most environments. The H6 is also available in a Stainless Steel Housing. The output parameters can be modified at the factory to meet your specifications (i.e. range, polarity). We also offer the Flex Series Development Kit allowing the end user to modify the sensor as needed right from a PC – providing full flexibility for R&D and OEM production lines.
Input and Output cables are sold separately here.
Multiple H6 sensors can be daisy-chained together in a row for monitoring along bridge spans, solar field arrays, and other applications that would benefit from multiple sensors. Daisy-chain cables are sold separately here.
In stock
The H6 is a configurable digital inclinometer.
| Weight | 20 oz |
|---|---|
| Dimensions | 4.34 × 3.26 × 1.8 in |
| Application | Underwater Submersible Inclinometer, Antenna Positioning, Motor Grading, Pitch and Roll Monitoring, Platform Leveling, Remote Infrastructure Monitoring, Roll Angle, Roll Over Early Warning, Slope Warning System, Vehicle Tilt Monitoring |
| Number of axes | |
| Backlit | |
| Classification | |
| Customizable | |
| Operating Temperature | |
| Output | Switch: Open Collector, Analog: Current, Analog: Voltage, Digital: RS485 |
| Accessories | |
| Color Zones | |
| IP Rating | |
| Resolution | |
| Measuring Range | ±6 Degrees, ±60 Degrees, -30 Degrees to +90 Degrees, ±5 Degrees, ±10 Degrees, ±20 Degrees, ±26 degrees, ±30 Degrees, ±45 Degrees, ±90 Degrees |
| Input | |
| Connector | |
| Units of Measurement | |
| Brand | |
| Manufacturer |
