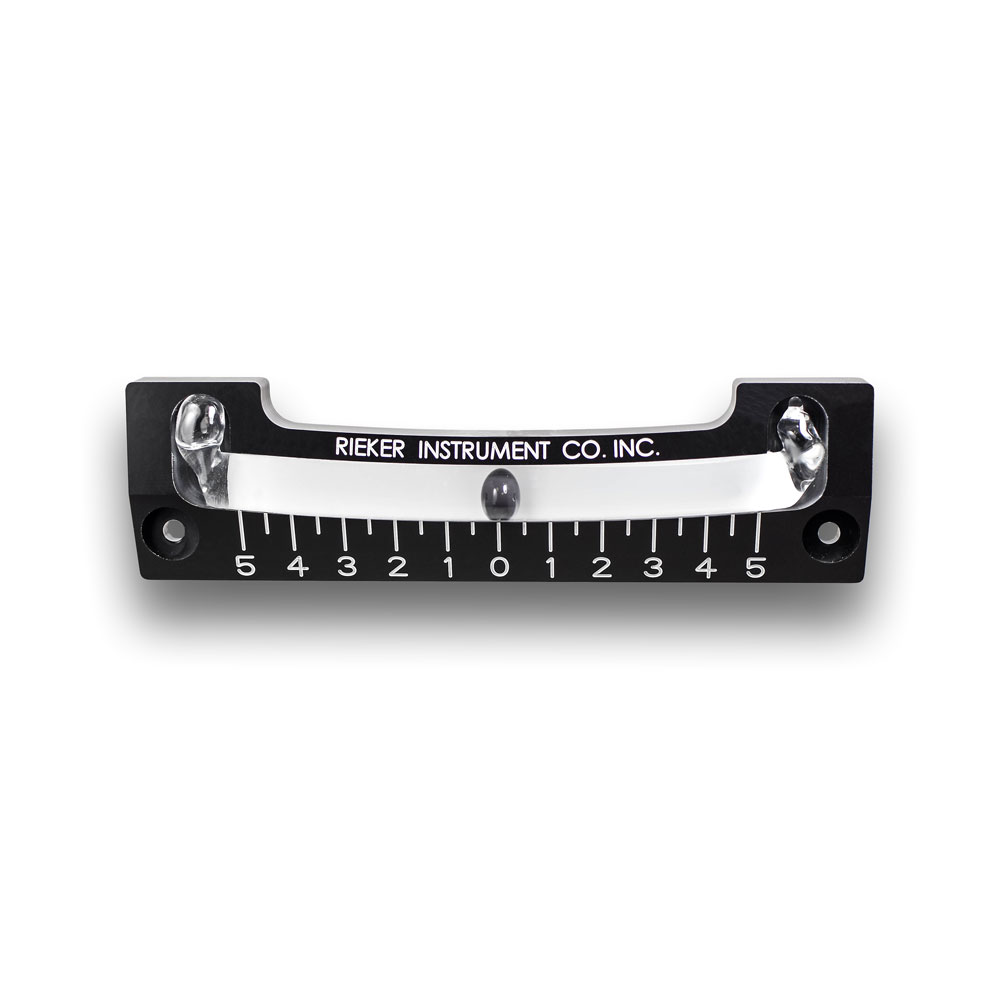

5005 Mechanical Aircraft Fuel System Attitude Indicator

Aircraft attitude indicators are specialized Pitch & Roll Inclinometers for balancing loads during fueling or loading of commercial aircraft. They are also referred to as a clinometer or inclinometer.

This unit is FAA 8130-3 certified under our PMA agreement.

Our 5005 mechanical inclinometer is a ±5 degrees unit with 0.5 degree increments. The housing is made of black compression molded acetal copolymer resin, making these clinometers extremely tough for all types of environments and weather conditions. Operating temperature range from -50°C to 70°C. The large, clear number and degree markings make it easy to get quick, accurate readings.

**This product cannot be purchased online. Please call Rieker customer service at 610-500-2000.**



Please Call Us
SKU: 5005 Category:

Aircraft Fuel System Attitude Indicator model number 5005. Our attitude indicators have been installed as original equipment on many airplanes at the manufacturing stage or purchased as an aftermarket upgrade to replace older style ‘plumb bob’ systems.

**This product cannot be purchased online. Please call Rieker customer service at 610-500-2000.**





Weight 6 oz
Dimensions 6.25 × 1.75 × 0.625 in
Application

Number of axes

Backlit

Classification

Customizable

FAA 8130-3 Certified

Measuring Range

Industries

Color Zones

Case Material

Tick Mark Increments

Operating Temperature

Brand

Manufacturer
